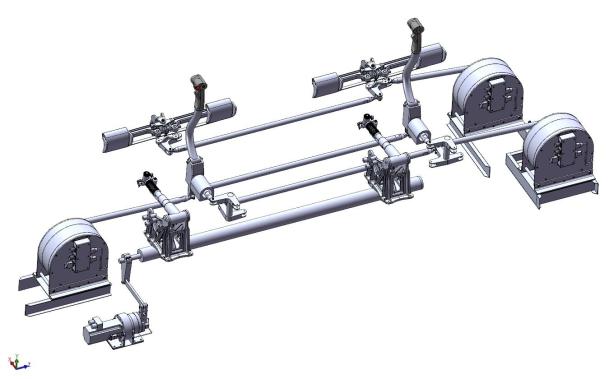

Simulating the kinematic of the controls.
Archive for the ‘3D CAD DESIGNS’ Category
PNEUMATIC DISTRIBUTOR ISOMETRIC VIEW
Posted: November 26, 2013 in 3D CAD DESIGNS, CNC MANUFACTURING CAM SIMULATIONS, CNC MANUFACTURING PROCESS
PNEUMATIC DISTRIBUTOR
Posted: November 26, 2013 in 3D CAD DESIGNS, CNC MANUFACTURING CAM SIMULATIONS, CNC MANUFACTURING PROCESS
The 3D Design have been made in Solidworks 2012. I have checked and simulated the kinematics of the main shaft to ensure the functionality and sealing of the O-Rings. The flow of air have been simulated in Solidworks Flow Simulation.
The CAM programs have been made with AlphaCAM using a general 5 axis post processor. The parts have been machined on OMNI CNC milling machine 5 axis and the main shaft on Takisawa CNC turning machine.
Adrian Hainarosie C.A.D. Mechanical Designer & C.A.M. Programming C.N.C. Manufacturing.
