This simulation demonstrates the design errors made in some gasification plants, were the PH meters are installed in area’s of the track pipes were you don’t have flow, so the measurments are not made correctly. This is a situation that I encountered in the past.
This simulation it’s just to demonstrate the principal effect.
Archive for the ‘FLOW SIMULATIONS WATER AND AIR’ Category
FLOW SIMULATION GAS INDUSTRY
Posted: November 27, 2013 in FLOW SIMULATIONS WATER AND AIR, OIL AND GAS DESIGNS0
TMHK PERSONAL DESIGN – INTAKE SIMULATION
Posted: November 26, 2013 in FLOW SIMULATIONS WATER AND AIR, TOMAHAWK Personal ConceptPersonal concept copyright
5 NACA profile scoops burried into the fuselage (PERSONAL CONCEPT) flow simulation
TMHK PERSONAL CONCEPT – INTAKE SIMULATION
Posted: November 26, 2013 in FLOW SIMULATIONS WATER AND AIR, TOMAHAWK Personal Concept
The design with the 5 scoops burried into the fuselage increases the flow into the engines intake. The NACA profiles are carefully determined for the intake to keep the lowest possible drag force.

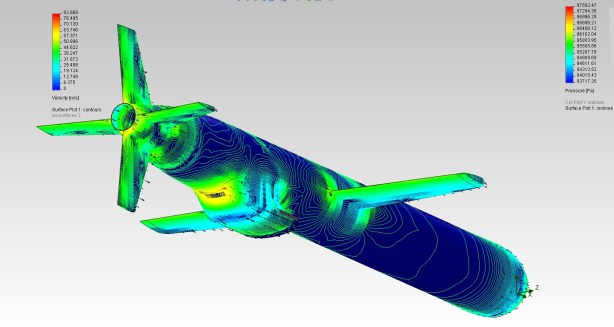

TMHK OLD DESIGN ISOMETRIC BACK VIEW
Posted: November 26, 2013 in FLOW SIMULATIONS WATER AND AIR, TOMAHAWK Personal Concept
This is a simulation of pressure points according to different speeds.
TMHK OLD DESIGN ISOMETRIC FRONT VIEW
Posted: November 26, 2013 in FLOW SIMULATIONS WATER AND AIR, TOMAHAWK Personal Concept
This is a simulation of pressure points according to different speeds

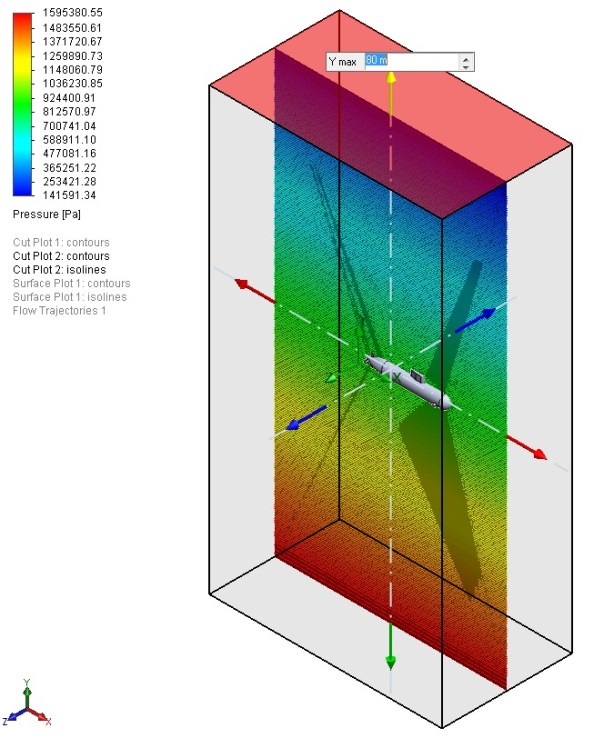

This simulation have been created to ensure that the structure will hold at different depths. The maximum depth was simulated to 80 meters.
