Video
—
Posted: December 13, 2014 in CNC MANUFACTURING CAM SIMULATIONS, CNC MANUFACTURING PROCESS
PNEUMATIC DISTRIBUTOR FINS ACTUATION
Posted: September 21, 2014 in 3D CAD DESIGNS, PNEUMATIC DISTRIBUTOR TMHK PROJECT

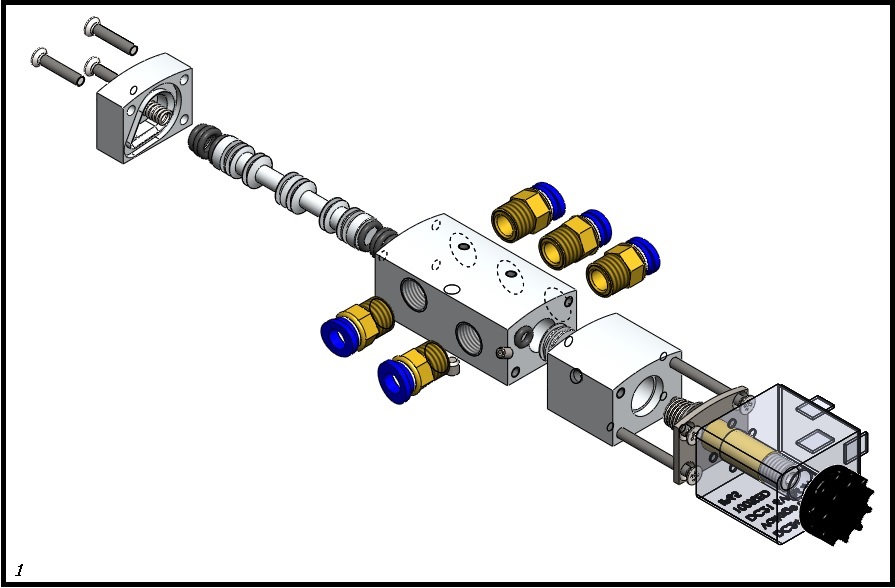

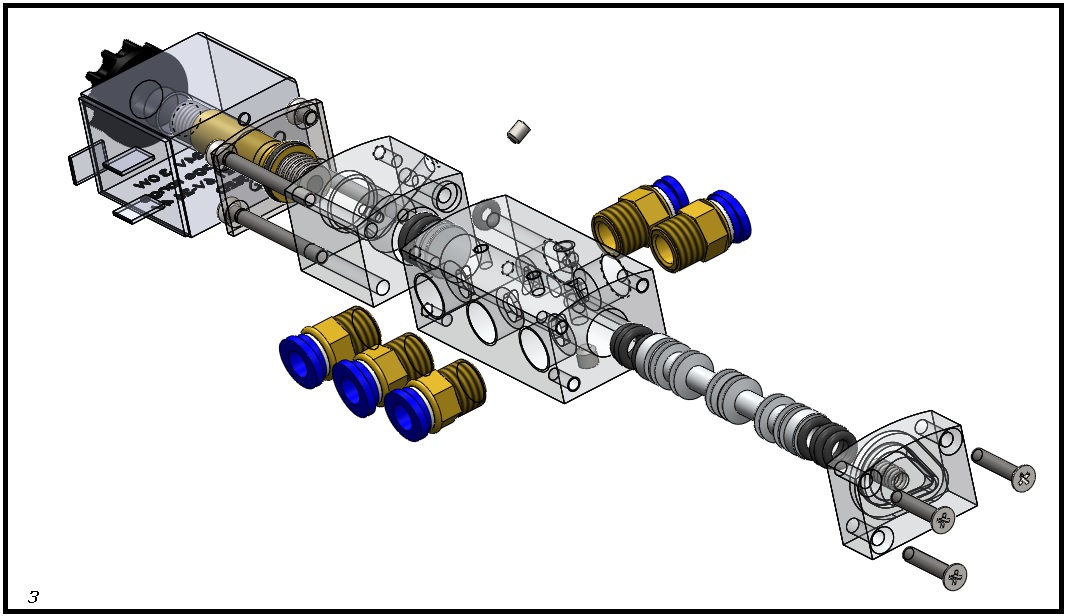

SOLIDWORKS DESIGN
—
Posted: February 16, 2014 in 3D CAD DESIGNS

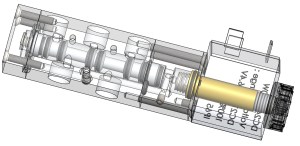

PNEUMATIC DISTRIBUTOR TMHK PROJECT
Posted: December 8, 2013 in 3D CAD DESIGNS, PNEUMATIC DISTRIBUTOR TMHK PROJECT

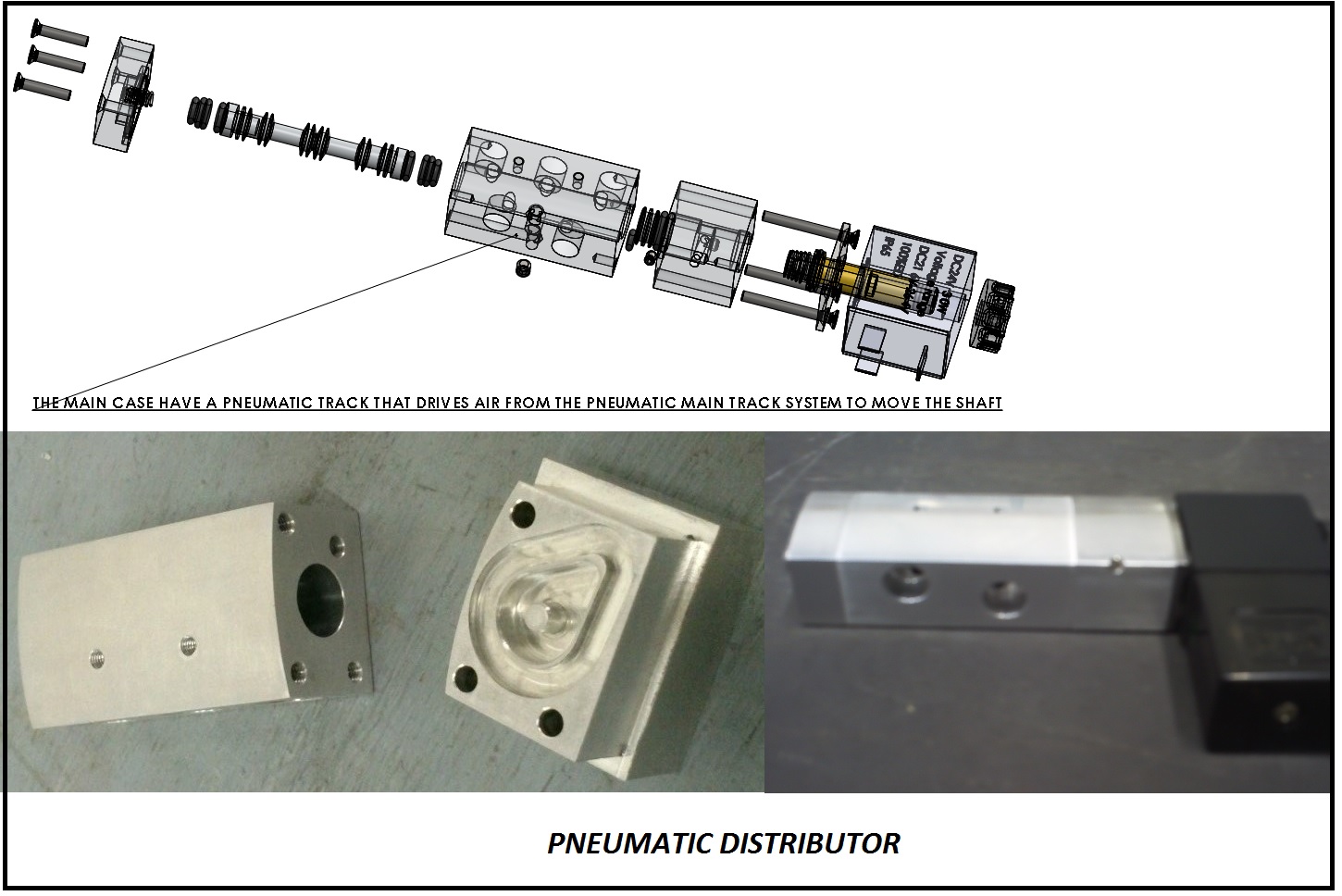

WORKING PRESSURE UP TO 12 BAR DUE TO THE HIGH MACHINING PRECISION CLASS. TOTAL LENGHT:110mm TOTAL HEIGHT:20mm TOTAL WIDTH OF THE MAIN CASE :26mm TOTAL WIDTH WITH THE PENUMATIC ADAPTORS BOLTED IN THE MAIN CASE:46.5mm
Due to confidentiality contracts I won’t present the internal structure and other components.
I am working on an improved personal concept that will be presented in the near future.
This simulation demonstrates the design errors made in some gasification plants, were the PH meters are installed in area’s of the track pipes were you don’t have flow, so the measurments are not made correctly. This is a situation that I encountered in the past.
This simulation it’s just to demonstrate the principal effect.
Video
—
Posted: November 27, 2013 in FLOW SIMULATIONS WATER AND AIR, OIL AND GAS DESIGNS
Personal concept copyright

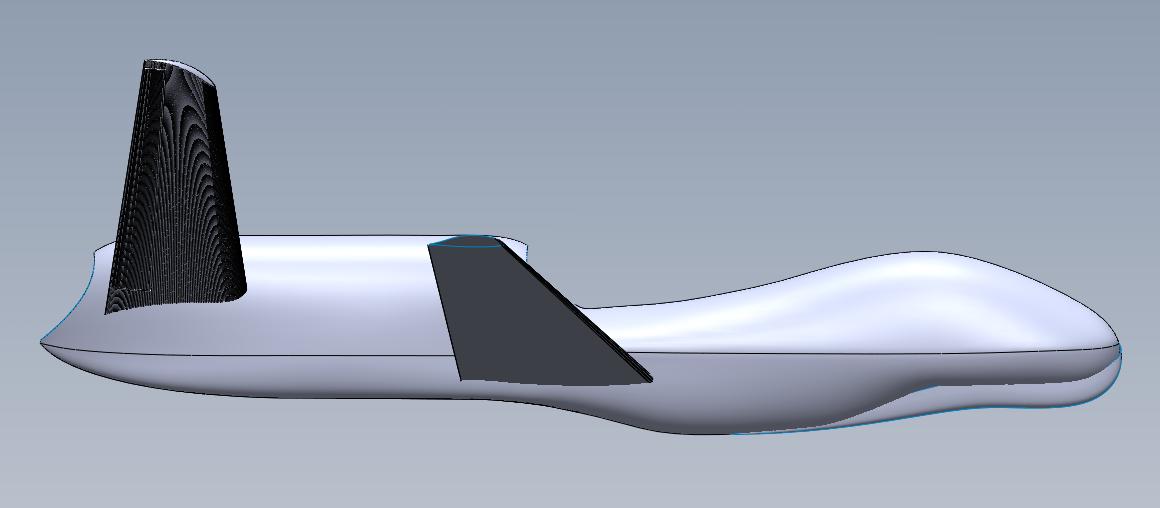

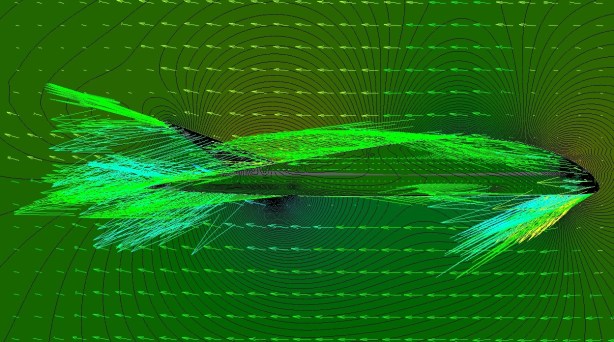

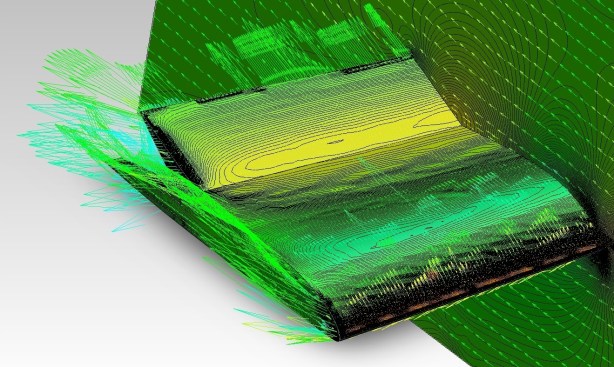

5 NACA profile scoops burried into the fuselage (PERSONAL CONCEPT) flow simulation
Video
—
Posted: November 26, 2013 in FLOW SIMULATIONS WATER AND AIR, TOMAHAWK Personal Concept
Adrian Hainarosie C.A.D. Mechanical Designer & C.A.M. Programming C.N.C. Manufacturing.
